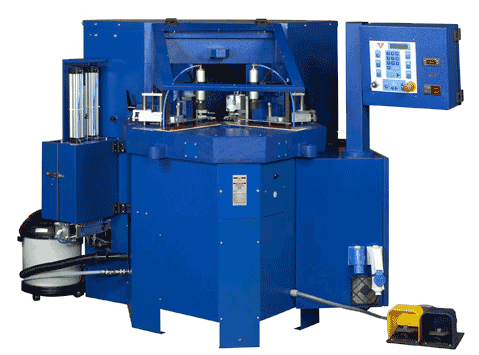

PRAXIS 4000 - PRAXIS 4000 E
The Praxis line consists of electronic crimping machines (Praxis 4000 E and Praxis 4000) to carry out the assembling included the glue injection inside the profiles. The machines from the line Praxis are exclusive and very innovative. The innovation regards the operation of corner closure that is performed without manpower and in compliance with the highest quality standards. The line of crimping machines, fast and trustworthy for the top quality assembling of aluminium frames, the only one technologic instrument also in the relation price - features - quality.
Pneumatic Supply
Nominal pressure:
6/7 bar
Electric Supply
Volts:
220 - 230 V
Frequency:
50 Hz
Working Data
Air absorption/operating cycle
325 NL
Knives stroke
10,5 mm
Bracing clamp stroke
120 mm
Max crimping height
120 mm
Max crimping widht
100 mm
Max crimping
thickness
3 mm
Horizontal operating range
40 mm
Digital reading of the crimping heads position
Drilling Data
Drilling unit Praxis 4000 (E)
2 (1)
Drilling angles
0/±20°/±45°
Max. distance between hole and corner's edge (heads at 45°)
10 mm
Max. distance between hole and corner's edge (heads at 20°)
)
)
)
